Brake Bonding Adhesive

The SHSC-225 brake pad special adhesive adopts the latest synthetic technology. This product is a modified high-performance phenolic resin adhesive, widely used in the bonding of friction materials, metal, non-metal and other materials. It is suitable for the bonding of automotive brake shoes, motorcycle brake shoes, industrial machinery brake shoes, with stable bonding performance, high strength, high temperature resistance and excellent comprehensive performance.

Product name:Brake adhesive
CAS No.:9003-35-4/68891-50-9

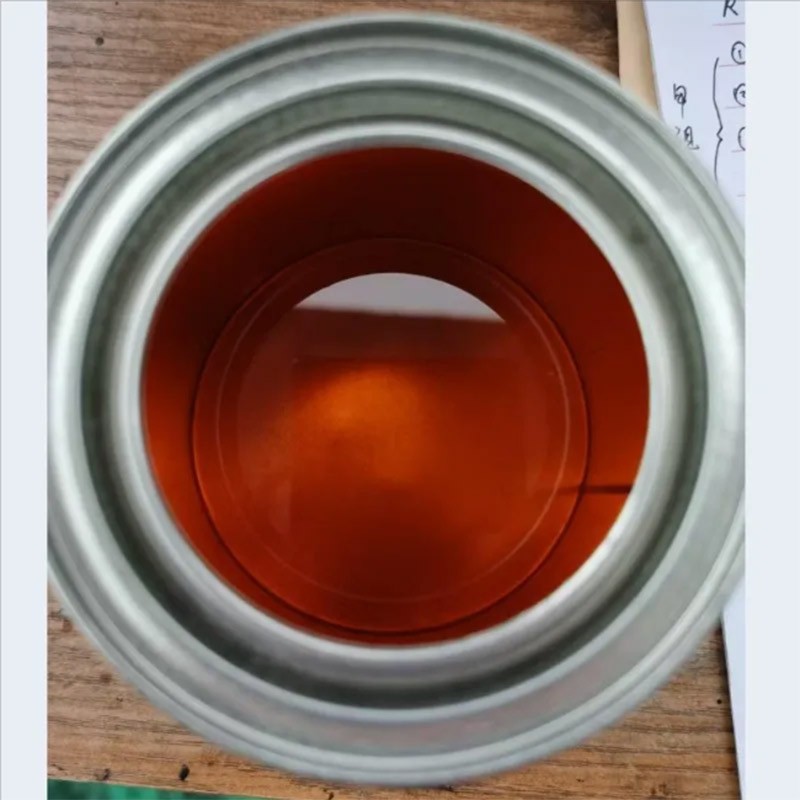

Appearance:Brownish yellow gelatinous body
Adhesive strength (MPa) 25 ± 2 ºC(room temperature):10
Brake pad adhesion strength (MPa) 25 ± 2 ºC (room temperature):4.1    95%
Brake pad adhesion strength (MPa) 250 ± 5 ºC (constant temperature for 30 minutes):2.2   85%
Viscosity (mpa. s):610.0
Relative density (water=1): 1.0
Flash point: 12.2 ºC
Ignition temperature (ºC): 385 ºC
Brake friction material bonding strength: 24 ± 2 ºC (room temperature) ≥ 4MPa
Drying conditions: (45 ºC) for 20 minutes
Curing conditions: pressure -1-2 kg/cm ²; Temperature/Time: 185-200 ºC/45-60 minutes
